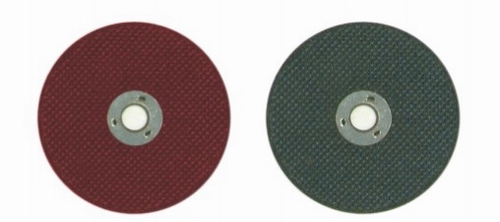

FLEXIBLE WHEEL

DIMENSION

MAX. SPEED

(INCH)

(MM)

(R.P.M.)

4" X 1/32" X 5/8"

100 X 2 X 16

13700

4" X 1/8" X 5/8"

100 X 2.5 X 16

13700

4.5" X 1/8" X 7/8"

115 X 2.5 X 22

12000

7" X 1/8" X 7/8"

180 X 2.5 X 22

7600

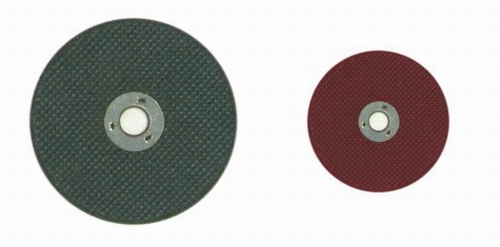

SUPER THIN CUTTING WHEEL

DIMENSION

MAX. SPEED

(INCH)

(MM)

(R.P.M.)

4" X 1/32" X 5/8"

100 X 1 X 16

15200

4.5" X 1/32" X 7/8"

115 X 1 X 22

13300

5" X 1/32" X 7/8"

125 X 1 X 22

12200

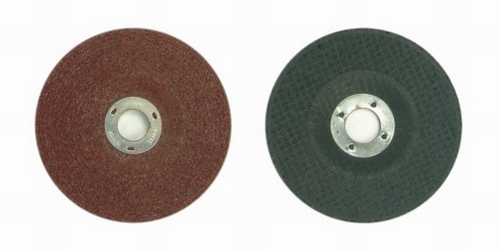

T27 CENTER-DEPRESSED GRINDING WHEEL

DIMENSION

MAX. SPEED

(INCH)

(MM)

(R.P.M.)

4" X 1/4" X 5/8"

100 X 6 X 16

15200

4.5" X 1/4" X 7/8"

115 X 6 X 22

13300

5" X 1/4" X 7/8"

125 X 6 X 22

12200

6" X 1/4" X 7/8"

150 X 6 X 22

10200

7" X 1/4" X 7/8"

180 X 6 X 22

8500

7" X 1/4" X 7/8"

230 X 6 X 22

6600

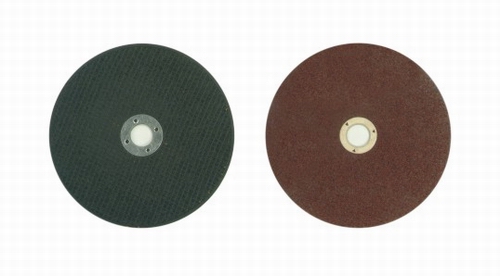

T41 CUTTING WHEEL

DIMENSION

MAX. SPEED

(INCH)

(MM)

(R.P.M.)

4" X 1/16" X 5/8"

100 X 2 X 16

15200

4.5" X 1/16" X 7/8"

115 X 2 X 22

13300

5" X 1/8" X 7/8"

125 X 3 X 22

12200

7" X 1/8" X 7/8"

180 X 3 X 22

8500

9" X 1/8" X 7/8"

230 X 3 X 22

6600

12" X 1/8" X 1"

305 X 3 X 25.4

5100

14" X 1/8" X 1"

355 X 3 X 25.4

4400

16" X 1/8" X 1"

405 X 3.2 X 25.4/32

3800

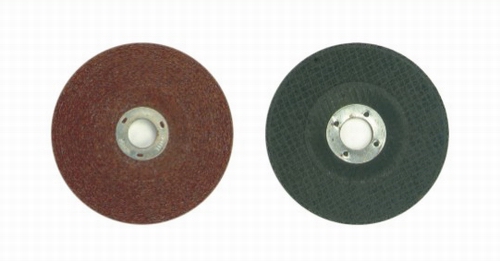

T42 CENTER-DEPRESSED CUTTING WHEEL

DIMENSION

MAX. SPEED

(INCH)

(MM)

(R.P.M.)

4" X 1/8" X 7/8"

100 X 3 X 16

15200

4.5" X 1/8" X 7/8"

115 X 3 X 22

13300

5" X 1/8" X 7/8"

125 X 3 X 22

12200

6" X 1/8" X 7/8"

150 X 3 X 22

10200

7" X 1/8" X 7/8"

180 X 3 X 22

8500

9" X 1/8" X 7/8"

230 X 3 X 22

6600
